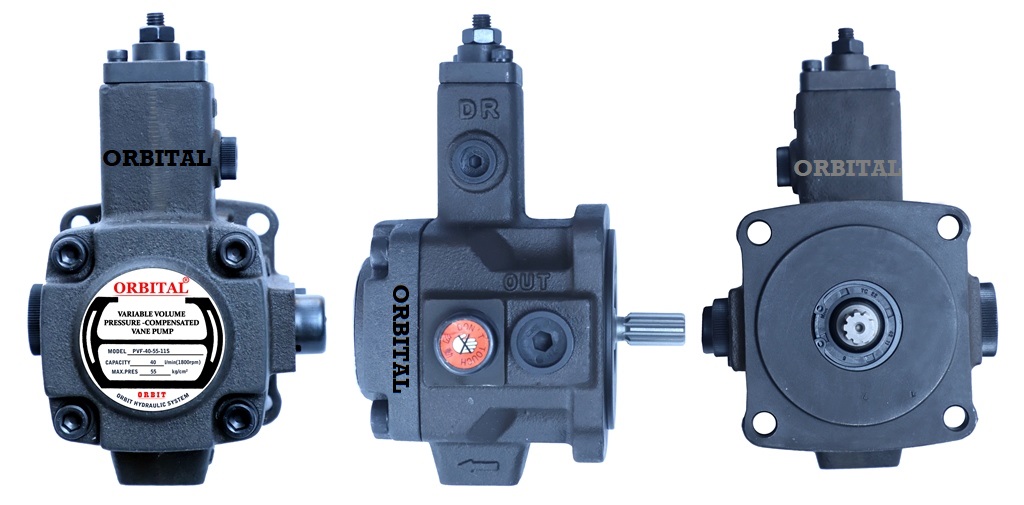

Anson PVF Series Hydraulic Variable Vane Pump Manufacturers in Ahmedabad Mumbai Chennai Bangalore Hyderabad Nashik Pune Indore Jaipur Delhi Haryana Gurgaon Noida Thane Kolkata Vasai India

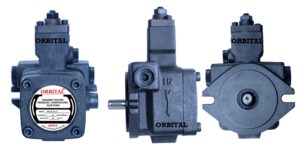

PVF-30 (40) Anson Hydraulic Variable Vane Pump in Ahmedabad Mumbai Chennai Bangalore Hyderabad Nashik Pune Indore Delhi Kolkata Vasai India

Anson Hydraulic Variable Displacement Vane Pumps Suppliers in Ahmedabad Mumbai Chennai Bangalore Hyderabad Nashik Pune Indore Jaipur Delhi Surat Rajkot Vadodara Kolkata India

We are dealing in Anson Make Hydraulic Pumps in India

Anson Hydraulic Variable Displacement Vane Pumps Suppliers in Ahmedabad Mumbai Chennai Bangalore Hyderabad Nasik Pune Indore Jaipur Delhi Surat Rajkot Vadodara Kolkata India

Our Ex-stock of Anson Hydraulic Pumps Range and Model no as under:

Variable Displacement Vane Pumps Model No of PVF Series PVF 8 (12), PVF 15 (20), PVF 30 (40), Single Variable Displacement Vane Pumps

Variable Displacement Vane Pumps Model No of PVDF Series PVDF, PVDF2 Double Variable Displacement Vane Pumps

Variable Displacement Vane Pumps Model No of VPF Series VP5F, VP6F, VP7F Single Variable Displacement Vane Pumps

Variable Displacement Vane Pumps Model No of VPF Series VP55FD, VP65FD, VP66FD Double Variable Displacement Vane Pumps.

Variable Displacement Vane Pumps Model No of VD & SVD Series Single Variable Displacement Vane Pumps

Variable Displacement Vane Pumps Model No of TPF Series Single Variable Displacement Vane Pumps

ANSON Oil Hydraulic Pump, PVF-40-5510S，PVF-12-35-10,、PVF-12-55-10, PVF-12-70-10, PVF-12-35-11,、PVF-12-55-11,、PVF-12-70-11,、PVF-15-35-10S,、PVF-15-55-10S,、PVF-15-70-10S,、PVF-20-55-10S,、PVF-20-35-10ST,、PVF-20-55-10ST,、PVF-20-70-10ST,、PVF-40-70-11,、PVF-20-35-20,、PVF-20-55-10S,、PVF-20-70-20,、PVF-30-35-20,、PVF-30-55-11S,、PVF-30-70-11S,、PVF-40-35-20,、PVF-40-70-20,、PVF-20-55-10,、PVF-30-55-11,、PVF-40-55-11,、PVF-30-35-102S,、PVF-40-35-102S,、PVF-30-55-112S,、PVF-40-55-11S,、PVF-30-70-11S,、PVF-40-70-11S,、PVF-20-35-11,、PVF-20-55-11,、PVF-20-70-11,、PVF-30-35-11,、PVF-30-55-11,、PVF-30-70-11,、PVF-40-35-11,、PVF-40-55-11,、PVF-40-70-11,、PVF-12-35-12,、PVF-12-55-12,、PVF-20-35-12,、PVF-20-55-12,、PVF-20-70-12,、PVF-30-35-12,、PVF-40-55-12,、VP5F-A5-50,、VP5F-B5-50,、VP5F-A4-50,、VP5F-B4-50,、VP5F-A2-5-50,、VP5F-A3-5-50S,、VP5F-A4-5-50S,、VP5F-A5-7-50S,、VD12-C-10S,、VD16-B-10S,、VD08-D-10,、VD16-D-12S,、VD16-B-12S,、PVF-20-35-22B,、PVF-20-55-22B,、PVF-20-70-22B,、PVF-30-35-25B,、PVF-30-55-25B,、PVF-30-70-25B,、PVF-40-35-25B,、PVF-40-55-25B,、PVDF-355-355-10,、PVDF-435-435-10,、PVDF-320-320-10S,、VP5F-A4-50,、VP5F-A3-50,、VP6F-A4-50,、VP5F-B4-50-100,、VP5F-B5-50-100,、VP5F-A5-50-100,、VP6F-B3-50,、VP6F-B3-50S,、VP6F-A3-50,

Application of hydraulic machinery: woodworking machinery, cutting machine, hydraulic press, injection molding machine, high frequency machine, machine, cutting machine, blowing machine, packing machine, flat vulcanizing machine etc..

Equivalent to Camel VCM series.

Equivalent to Yuken SVPF series.

Equivalent to Kompass variable displacement pump series.

PVF Series pumps have a maximum pressure of 70 Bar and are available in pump flow rates of 8, 12, 15, 20, 30 and 40 LPM @ 1800 rpm.

These pumps are equivalent to Yuken SVPF series, Camel VCM-SF series, Kompass VA1,VB1,VD1,VE1 series, Dynatech DWP-SF series.

VP Series pumps are heavy duty, quick response pumps. These have a maximum working pressure of 140 bar with flow rate of 30, 40, 54 and 70 LPM @ 1800 rpm. These pumps are equivalent to Nachi VDR 22 Series, Kompass VD2 and VE2 series, Camel VCM-SM Series, Dynatech DVVP-SM series.

TPF Series pumps are through shaft pumps. TPF HGP series pumps have a variable displacement vane pump of 30 and 40 lpm with a max operating pressure of 70 bar coupled to a fixed displacement gear pump with a max working pressure of 210 bar (intermittent peak 250 bar). TPF PR1 series pumps are similar to the TPF HGP except that the fixed displacement pumps have a built in relief valve. These are excellent pumps for CNC machines. The Variable pumps can be used for the machine tool hydraulic circuit and the gear pump can be used for the hydraulic clamp. Equivalent to Kompass VD1 SL and VE1 SL, Camel VCM-SF/EGA.

VP5FD Series are heavy duty double variable displacement vane pumps with max working pressure of 140 bar and flow rates of 25 25, 25 33 and 33 33 LPM. The flow and pressure of each of the pumps can be changed independent of the other pump. Equivalent to Nachi, Dynatech, Camel, Kompass.

PVDF series are double variable displacement vane pumps with max working pressure of 70 bar and flow rates of 30 30, 30 40 and 40 40 LPM. The flow and pressure of each of the pumps can be set independent of the other pump. These pumps are extensively used in many applications including CNC machines. Equivalent to Dynatech DVVP-DF series, Kompass VD2D2 series.

Intravane Fixed Displacement Vane Pumps

IVP Series

IVPQ Series

IVPV Series

Variable Displacement Vane Pumps

Single Vane Pumps & Double Vane Pumps

Anson Hydraulic Pumps – Suppliers In Ahmedabad Mumbai Chennai Bangalore Hyderabad Nashik Pune Indore Jaipur Surat Rajkot Vadodara India.

We are offering our valued clients an impeccable range of Hydraulic Pump. In this range, we provide gear pumps, load sensing axial piston pumps; variable piston pumps open loop and bend axis axial piston. Manufactured using high-grade stainless steel and other materials, these products conform to the defined parameters of the industry. To cater to the needs of our valued clients, these products are available in various specifications. Furthermore, all our products are quality-assured for the satisfaction of our valued clients on delivery. Hydraulic pumps are sources of power for many dynamic machines. Hydraulic pumps are capable of pushing large amounts of oil through hydraulic cylinders or hydraulic motors. In this fashion, the pump converts the mechanical energy of the drive (i.e. torque, speed) into hydrostatic energy (i.e. flow, pressure).

our range of Hydraulic pump :

Hydraulic Gear Pumps (External gear pump , Internal gear pump ) Hydraulic Vane Pumps , Hydraulic Piston Pumps (Axial piston pump , Radial piston pump)

The working principle and classification of the vane pump:

The structure of the vane pump is more complex than the gear pump, but its working pressure is high, the flow pulsation is small, the work is smooth, the noise is small, and the life is long, so it is widely used in the middle and low pressure hydraulic system of the professional machine tool and automatic line. Vane pumps are divided into single acting vane pumps (variable pump, maximum working pressure of 7.0Mpa) and double acting vane pumps (the maximum pressure of the fixed pump is 7.0Mpa). The single acting vane pump structure and principle have a cylindrical inner surface, the stator and the rotor have eccentricity e, the blade is installed in the rotor slot and can be moved in the slot. When the rotor is rotating, the blade is close to the inner wall of the stator because of the centrifugal force, the stator, rotor, blade and both sides of the oil plate. When the working interval is sealed, when the rotor is turned in the direction of the diagram, the blade is gradually extended at the right part of the map, On the left part of the diagram, the blade is gradually pressed into the slot by the inner wall of the stator, and the working space gradually decreases, and the oil is pressed out from the oil outlet, which is the oil pressing cavity. There is a section of oil sealing betJinan Excavator Parts Companyen the oil suction cavity and the pressure chamber, which separates the oil suction cavity from the pressure chamber, and the rotor of the vane pump is used for oil absorption and pressure in each working space, so it is called a single action vane pump.
